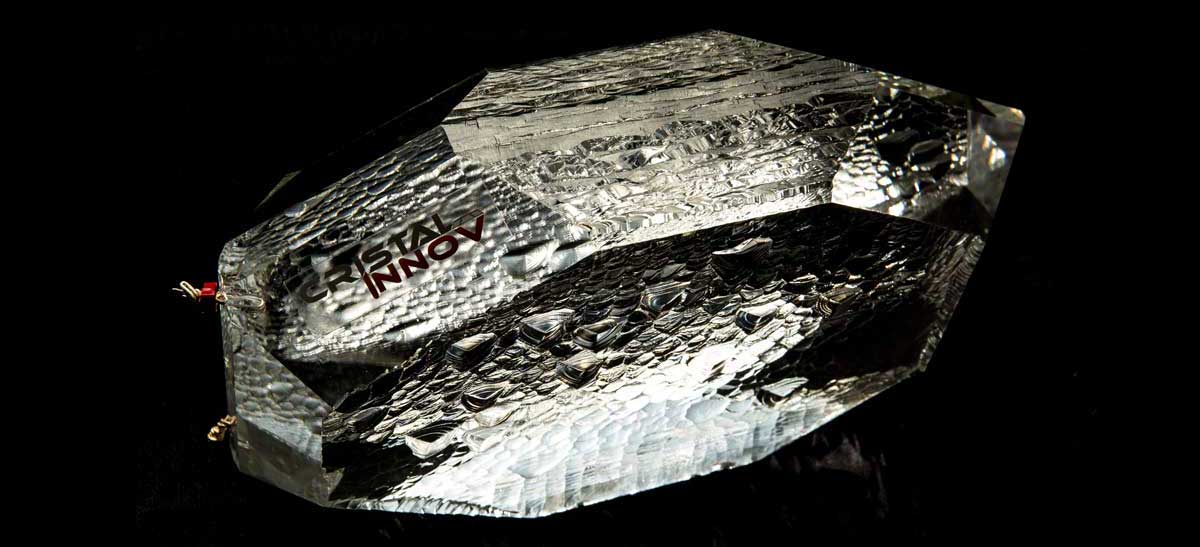

Quartz

In the face of increasing difficulties in supplying quartz crystals for strategic applications such as space, defense and medical, Cristal Innov has resumed European production of very high-quality quartz and wafers.

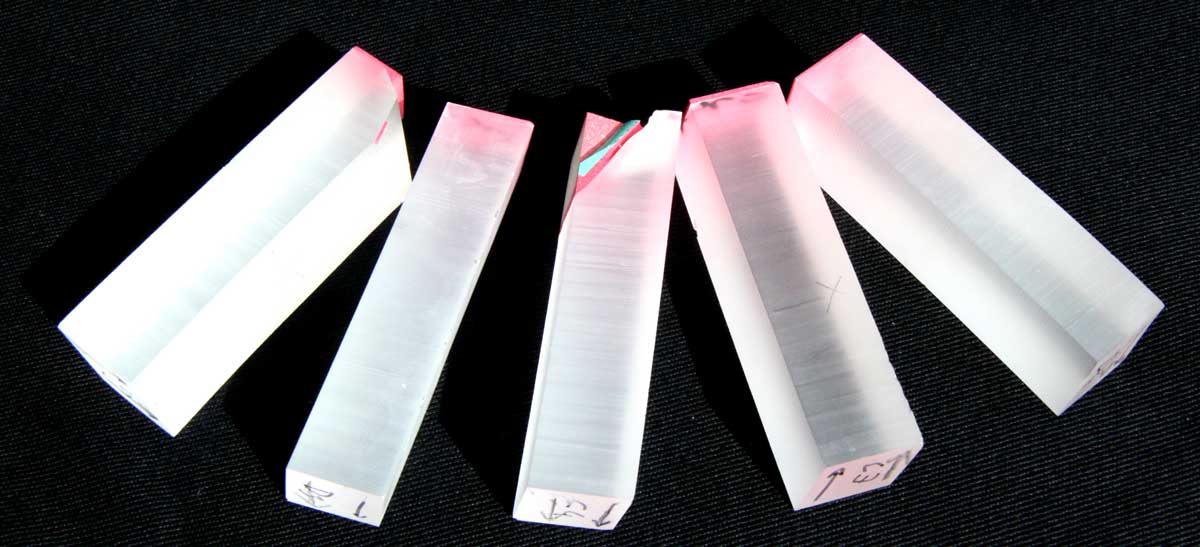

QUARTZ Bars are from pure Z-zone Cristal Innov

Bars

Bars are from pure Z-zone, with or without seed, Y0, or pre-oriented for a specified cut (AT, SC…)

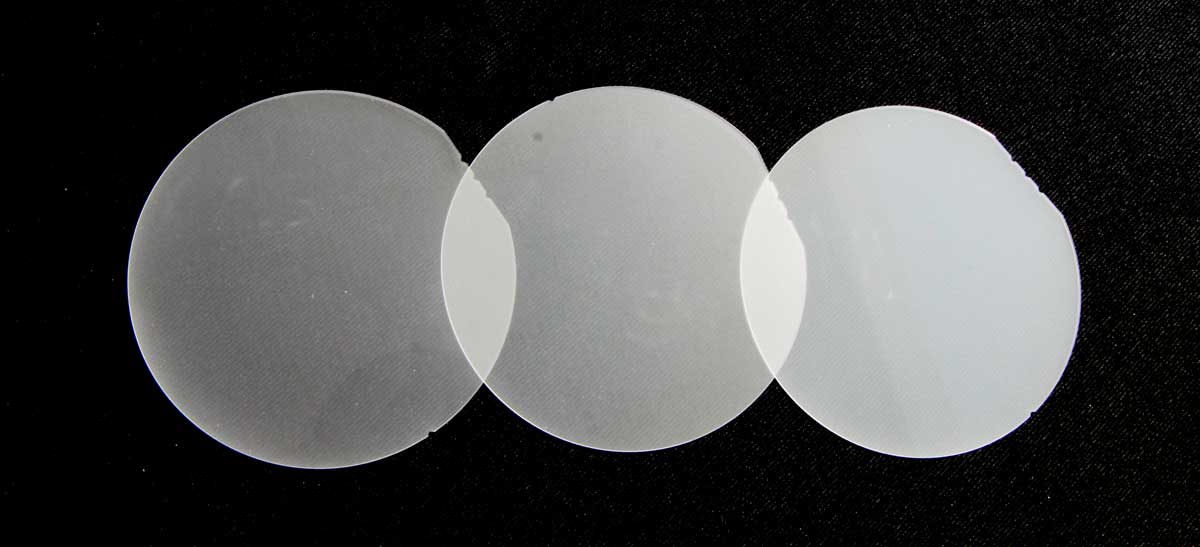

QUARTZ BLANKS OR WAFERS Cristal Innov

Blanks or wafers

  • Cuts (AT, SC, Z, X…)
  • Lapped, single side or double side polished
  • 5 mm to 150 mm
QUARTZ RESONATORS Cristal Innov

Customized products

Very high-quality quartz

Quality criteria according to IEC 60758 standard

Right-handed quartz only
Infrared extinction coefficient:
 by Fourier Transform Infrared (FTIR) spectrometry
α3500cm-1 < 0,026
Equivalent à un
α3585cm-1 < 0,015 ou
α3410cm-1 < 0,075
Grade Aa
Inclusion density:
  by visual inspection under high intensity light with index liquid
10 – 30 µm : N < 2
30 - 70 µm : N <1
70 - 100 µm : N <0
> 100 µm : N < 0
Grade 1a
Etch channel density
  by channels counting in an etched AT-cut slice
< 10/cm2
Grade 1
Impurity level: By mass ICP-MS

Al, Fe, Na, K, Ca < 2 ppm
Li                               < 0.1 ppm

Dislocation density
  by X-ray topography
< 30/cm2

Hydrothermal synthesis

Cristal Innov has specialized in the crystallization of very high-quality quartz, by mastering the material, the specific cuts, and their characterization.

Both very slow growth rates – inhibiting the formation of defects –, and reproducibility make it possible to produce high-performance crystals for piezoelectric applications:

  • ultra-stable, low-noise resonators/oscillators
  • SAW sensors, inertial navigation system (accelerometers, gyroscopes…)

Crystals > Substrates & processes
